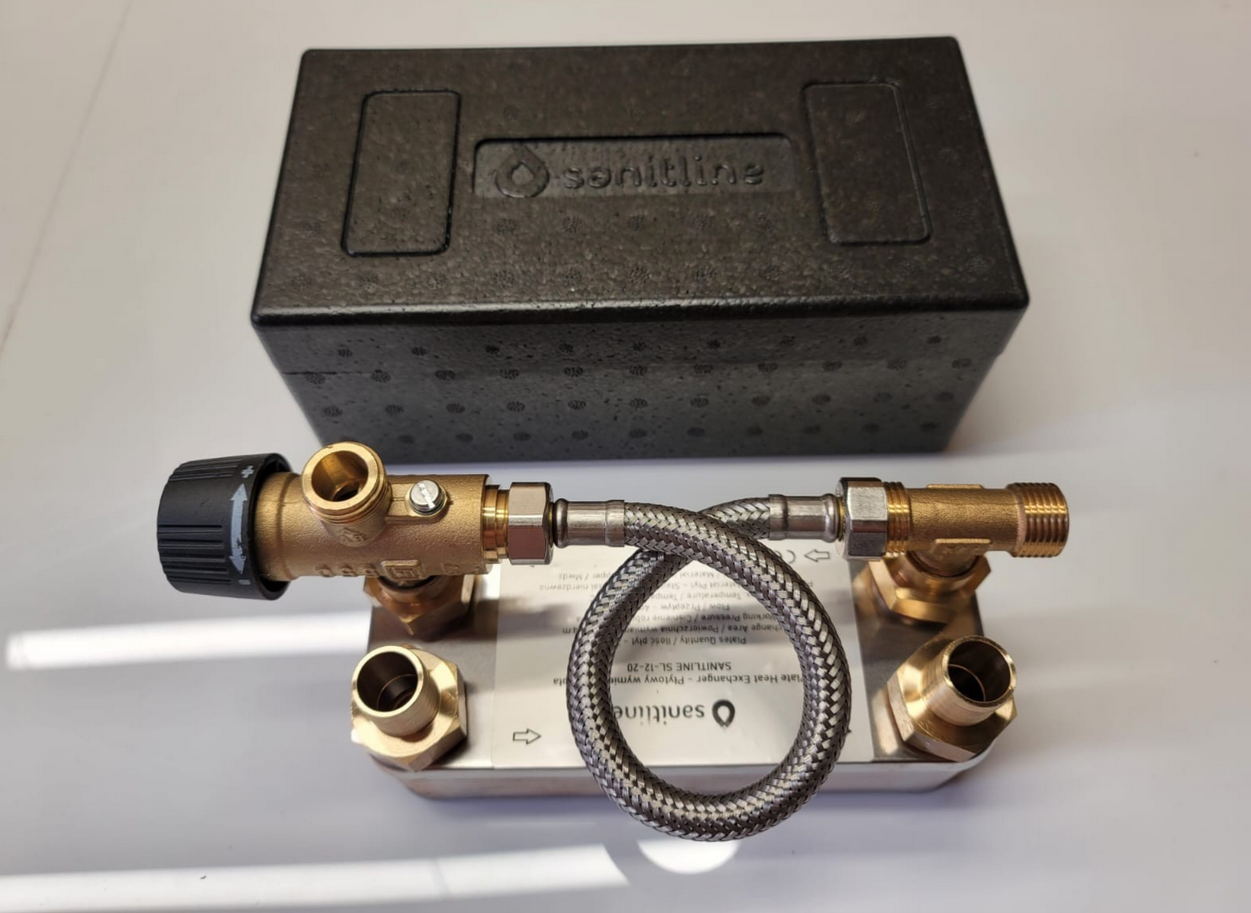

Heat Exchanger with Thermostatic Valve 45kW

Heat Plate Exchanger:

• 45kW 50 plate
• 4x 3/4" BSP
• Working Pressure 10 bar
• Bursting Pressure 20 bar
• Flow Max 4 m3/h
• Heat Exchange Surface Area 0.60 m2
• 316SS with vacuum soldered plates, 99.9% copper solder

Thermostatic Valve:

• M550 35°C - 65°C Adjustable ( with additional 5°C either side of temperature range )
• FLAT FACE 1/2" THREADS ( easy to connect to with regular flexible hoses )

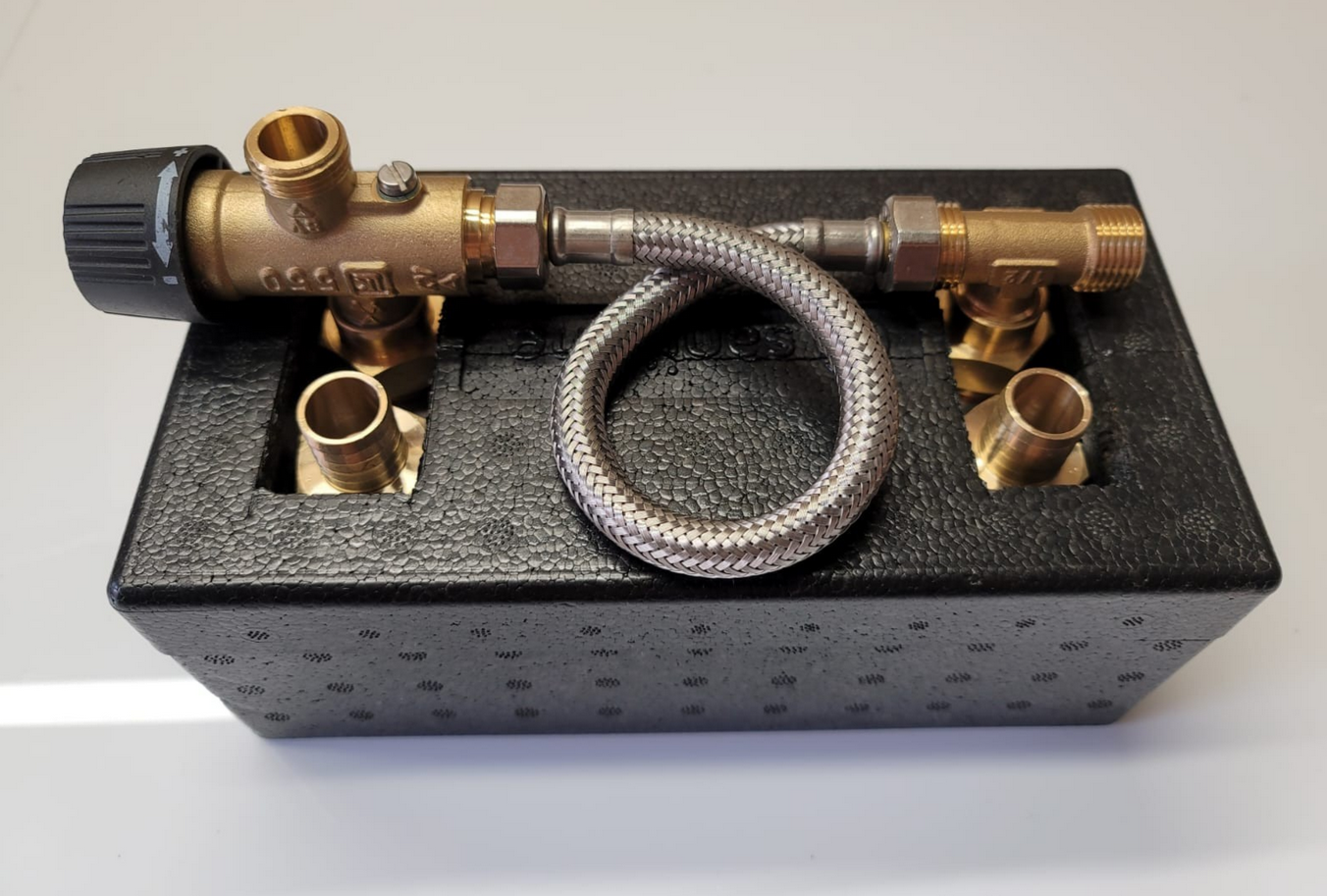

Insulation Box:

• PP/PE Insulation
• 7" x 5.5" x 6"

Set complete with:

• 2x 3/4" - to - 20mm hose tails
• 2x 3/4" - to - 1/2" reducers
• 1x 1/2" Tee Piece (flat face)
• 4x 3/4" gaskets
• 1x Flexible hose
