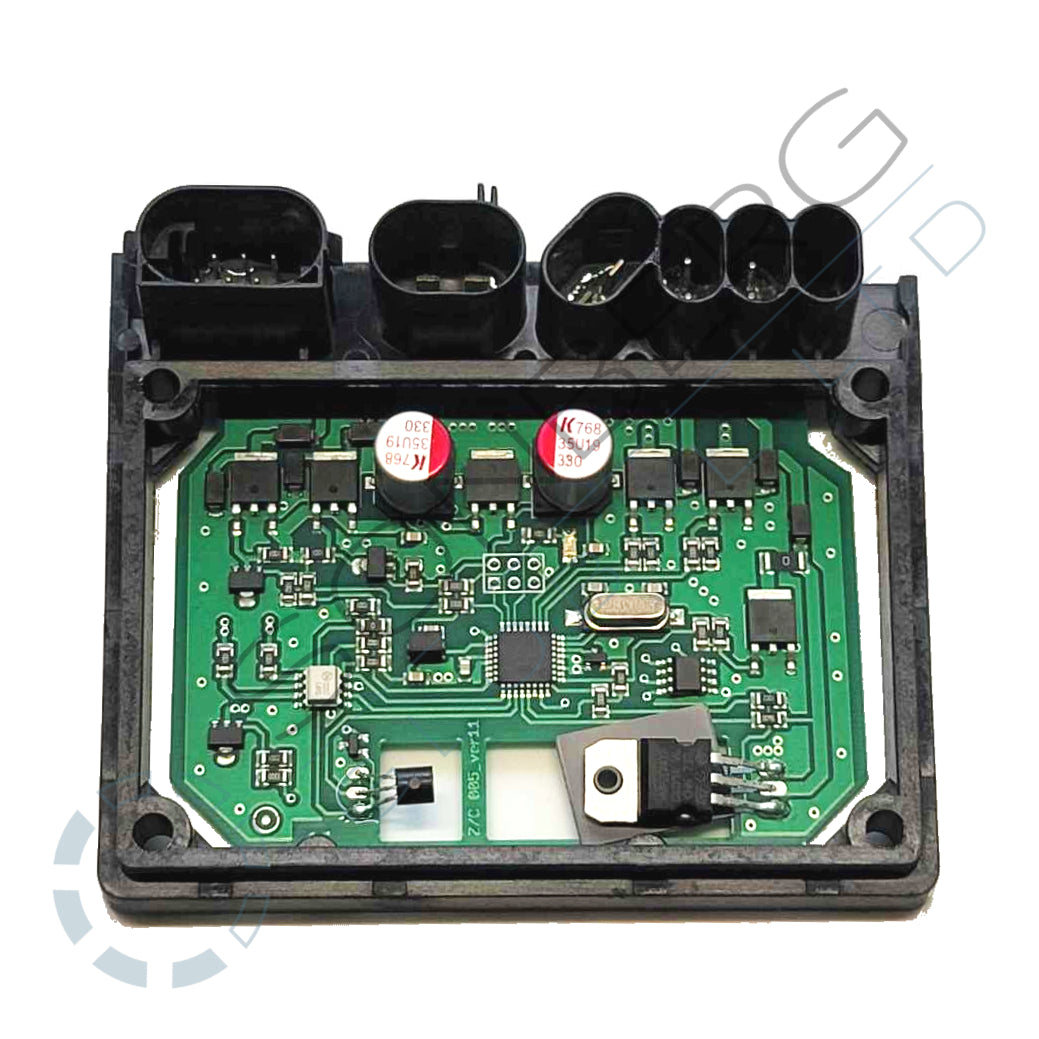

Webasto Thermo Top C E Analog PCB Aftermarket 80

Webasto Thermo Top C E PCB Board AFTERMARKET

DIESEL 12v DIESEL

ANALOG (Power ON on Pin1)

New AFTERMARKET Part

Autonomous ( controls water pump and aux fan relay live at 35deg )

Will max out at 80-85 DEGREES

Full power burn startup-to-60deg, then 50% burn to 80deg, wind down, then back on at 60deg with 50% burn.

COMMS/DIAG on Pin2 accessible with regular USB dongle and PuTTY.exe as opposed to Webasto Thermo Test.

Access codes in the last picture

https://www.putty.org/
